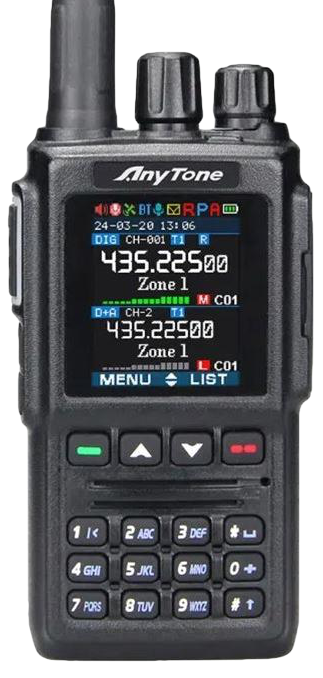

Anytone AT-D168UV

$$
Great
Avoid
4000
memories
256
groups
16
letters
5W
transmit power
6m2m1.25m70cm
IP00
MIL-STD-810
Dual band, single receive
Circuit
NOAA
NOAA alert
Broadcast FM
Airband
Bluetooth
GNSS
2600mAh
battery
charges from
cradleradioUSB-C
SMA male
USB-C
K1
Audio
DC input
D-STAR
DMR
System Fusion
NXDN
APRS
DPRS
KISS TNC
CHIRP
MicroSD
Full duplex
Cross-band repeater
Flashlight
Roger beep
Unlockable

Specifications

Market

Released 2023
Discontinued No
Similar To None
Specs checked Listed

Circuitry

Design Dual band, single receive
RX circuit Unknown
Operation
Full duplex
Cross band repeater

Receiver

RX frequencies 136–174 MHz, 400–480 MHz
Also receives
Airband
Broadcast FM
NOAA
NOAA alert

Transmitter

Bands
6m2m1.25m70cmGMRSMURS
TX power settings VHF 5/2.5/1/0.2 W, UHF 4.5 W
Extras
Roger beep
Unlockable

Memories

Memories 4000
Memory groups 256
Length of memory name 16
Memory details 4000 channels, 256 zones, 10000 talkgroups, 500000 contacts

Digital

Voice
D-STAR
DMR
System Fusion
NXDN
Data
APRS
DPRS
KISS TNC
GNSS
Bluetooth None
USB Charging and programming
Programming
CHIRP

Battery

Battery capacity 2600mAh
Battery voltage 7.4V
Charges from
Cradle
Radio
USB-C
Cradle USB connector None
Cradle DC input connector None
Cradle DC input voltage None

Physical

Manufacturer
Width 54mm2.13in
Height 104mm4.09in
Depth 36mm1.42in
Weight 224g7.90oz
Carry weight Unknown
IP rating IP00, not rated
MIL-STD-810 None
Display 1.77 inch color TFT
Antenna connector SMA male
USB connector USB-C
DC input connector None
DC input voltage None
Audio connector K1 (Kenwood)
PTT Single side button
Buttons Programmable side keys
Knobs Dual top knobs (channel, volume)
MicroSD None
Built in
Flashlight
