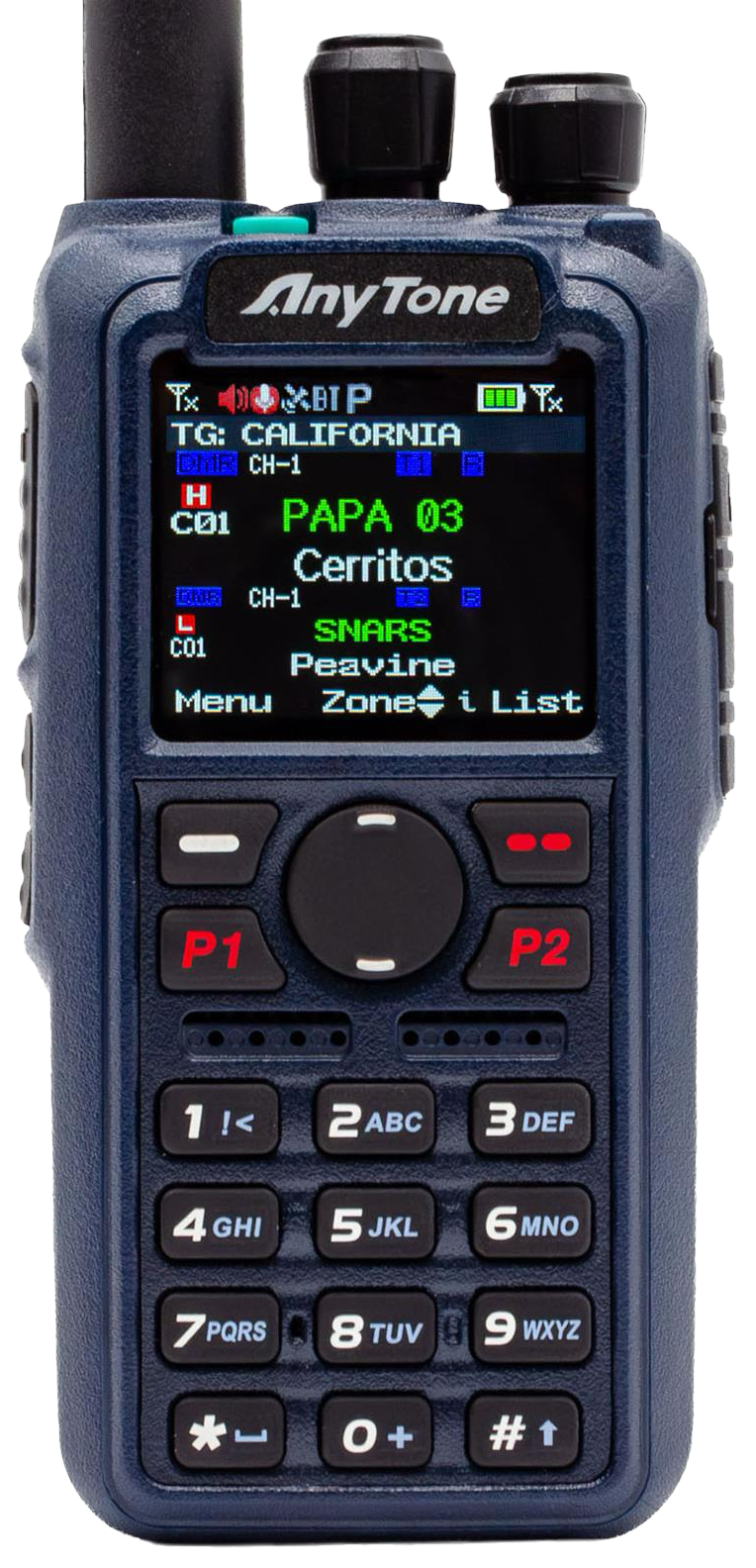

Anytone AT-D890UV

$$$

Untested

4000

Memories

250

Groups

Name Length

70cm

MIL-STD-810

Dual band
dual receive

Unknown

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB-C

3100

mAh Battery

SMA Male

USB-C

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Dual band dual receive
RX circuit
Full duplex	true
Cross band repeater	true

Receiver

RX frequencies	87.5–108 MHz (broadcast FM), 108–174 MHz, 400–480 MHz
Airband	true
Broadcast FM	true
NOAA	true
NOAA alert	true

Transmitter

TX power settings

VHF 7/5/2.5/0.2 W, UHF 6/5/2.5/0.2 W

2m band	true
70cm band	true
1.25m band	false
6m band	false
GMRS	false
MURS	false
Roger beep	true

Memories

Memories	4000
Memory details	4000 channels + VFO, 250 zones, 10000 talkgroups, 500000 contacts

Digital

APRS DMR NXDN GNSS

Bluetooth	Built-in, PTT button, audio and programming
USB	Charging and programming
GNSS	true

Battery and Cradle

Battery capacity in mAh	3100 mAh
Battery voltage	7.4 volts
Battery USB connector	USB-C
Battery charges from radio	false
Battery charges from a cradle	true
Cradle USB connector	USB-C
Cradle DC input connector
Cradle DC input voltage	volts

Physical Characteristics

Width
Height
Depth
Weight
Carry weight
Display	1.77 inch color TFT
Antenna connector	SMA Male
USB connector	USB-C
DC input connector	None
DC input voltage	None
Audio connector	K1 (Kenwood)
MicroSD	No
PTT	Single side button
Buttons	Two left side programmable buttons
Knobs	Volume knob with power switch; encoder knob
Flashlight	false
Ingress Protection Rating	IP54 - Limited dust, water splashes
MIL-STD-810	Not rated
