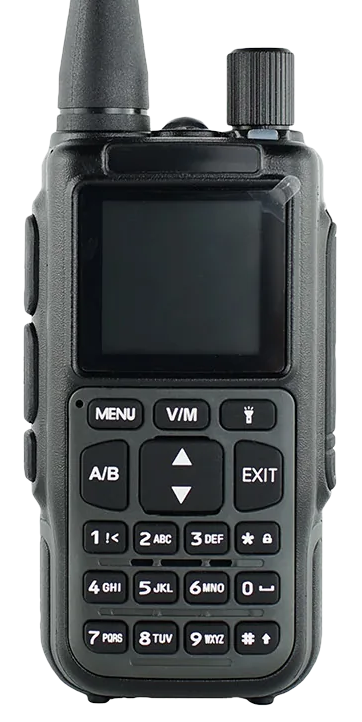

Baofeng Mini 5

Untested

999

Memories

Groups

Name Length

70cm

MIL-STD-810

Dual band
single receive

Direct Conv

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB-C

2200

mAh Battery

SMA Female

USB

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Dual band single receive
RX circuit	Direct conversion
Full duplex	false
Cross band repeater	false

Receiver

RX frequencies	76-108, 108-136, 136-174, 350-390, 400-520 MHz
Airband	true
Broadcast FM	true
NOAA	true
NOAA alert	false

Transmitter

TX power settings	High=5W, Low=2W
2m band	true
70cm band	true
1.25m band	false
6m band	false
GMRS	false
MURS	false
Roger beep	true

Memories

Memories	999
Memory details

Digital

Bluetooth	App programming (OLA Radio, iOS/Android)
USB
GNSS	false

Battery

Battery capacity in mAh	2200 mAh
Battery voltage	7.4 volts
Battery charges directly from USB	USB-C
Battery charges from a cradle	false
Battery cradle DC input connector
Battery cradle DC input voltage	volts
Battery charges from radio	true

Physical Characteristics

Width	52 mm (2.05")
Height	108 mm (4.25")
Depth	37 mm (1.46")
Weight
Carry weight	200 g (7.05 oz)
Display	1.44" color LCD
Antenna connector	SMA Female
USB connector	None
DC input connector	None
DC input voltage	None
Audio connector	K1
MicroSD	No
PTT	2 buttons, one for each band
Buttons	None
Knobs	None
Flashlight	true
Ingress Protection Rating	Not rated
MIL-STD-810	Not rated
