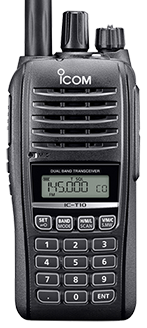

Icom IC-T10

$$
Great
Avoid
200
memories
Unknown
groups
6
letters
5W
transmit power
6m2m1.25m70cm
IP67
MIL-STD-810G
Dual band, single receive
Direct conversion
NOAA
NOAA alert
Broadcast FM
Airband
Bluetooth
GNSS
2400mAh
battery
charges from
cradleradioUSB
SMA female
USB
S9
Audio
DC input
D-STAR
DMR
System Fusion
NXDN
APRS
DPRS
KISS TNC
CHIRP
MicroSD
Full duplex
Cross-band repeater
Flashlight
Roger beep
Unlockable

Specifications

Market

Released April 2022
Discontinued No
Similar To None
Specs checked Listed

Circuitry

Design Dual band, single receive
RX circuit Direct conversion
Operation
Full duplex
Cross band repeater

Receiver

RX frequencies 136-174 MHz, 400-479 MHz
Also receives
Airband
Broadcast FM
NOAA
NOAA alert

Transmitter

Bands
6m2m1.25m70cmGMRSMURS
TX power settings 5W,2.5W,0.5W
Extras
Roger beep
Unlockable

Memories

Memories 200
Memory groups Unknown
Length of memory name 6
Memory details 200 regular memories with 6-character alphanumeric names, 2 call channels, 6 scan-edge channels (3 pairs)

Digital

Voice
D-STAR
DMR
System Fusion
NXDN
Data
APRS
DPRS
KISS TNC
GNSS
Bluetooth None
USB None
Programming
CHIRP

Battery

Battery capacity 2400mAh
Battery voltage 7.2V
Charges from
Cradle
Radio
USB
Cradle USB connector None
Cradle DC input connector None
Cradle DC input voltage None

Physical

Manufacturer
Width 52mm2.06in
Height 112mm4.40in
Depth 30mm1.19in
Weight Unknown
Carry weight 278g9.81oz
IP rating IP67
MIL-STD-810 MIL-STD-810G
Display Segmented monochrome LCD with backlight
Antenna connector SMA female
USB connector None
DC input connector None
DC input voltage None
Audio connector S9 (Icom Slim L)
PTT Single side button
Buttons [MONI] button opens the squelch, ie monitor; [P] buttons is programmable
Knobs Volume knob with power switch, encoder knob
MicroSD None
Built in
Flashlight
