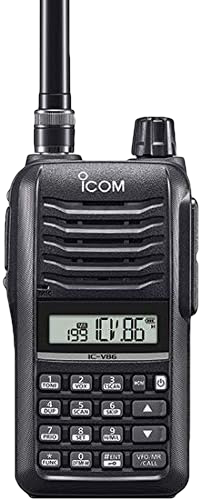

Icom IC-V86

Untested

200

Memories

Groups

Name Length

MIL-STD-810

Single band

Direct Conv

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB

2250

mAh Battery

BNC Female

USB

Icom 2 Pin Screw Down

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Single band
RX circuit	Direct conversion
Full duplex	false
Cross band repeater	false

Receiver

RX frequencies	136-174 MHz
Airband	false
Broadcast FM	false
NOAA	false
NOAA alert	false

Transmitter

TX power settings

Ex-Hi=7W; Hi=5.5W; Mid=2.5W, Low=0.5W

2m band	true
70cm band	false
1.25m band	false
6m band	false
GMRS	false
MURS	false
Roger beep	false

Memories

Memories	200
Memory details	207 channels total: 200 regular memory channels, 6 scan edge channels, and 1 call channel

Digital

Bluetooth
USB
GNSS	false

Battery and Cradle

Battery capacity in mAh	2250 mAh
Battery voltage	7.4 volts
Battery USB connector	None
Battery charges from radio	false
Battery charges from a cradle	true
Cradle USB connector	None
Cradle DC input connector	Barrel DC jack on BC-240 desktop charger (fed by BC-242 AC adapter)
Cradle DC input voltage	volts

Physical Characteristics

Width
Height
Depth
Weight
Carry weight
Display	Monochrome backlit segment LCD

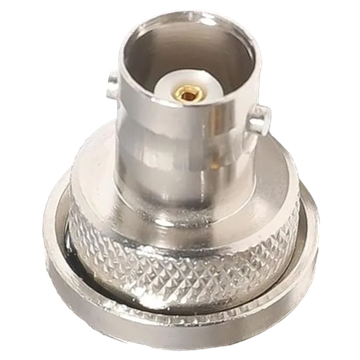

Antenna connector	BNC Female
USB connector	None
DC input connector	None
DC input voltage	None
Audio connector	Icom 2 Pin Screw Down
MicroSD	No
PTT	Single side button
Buttons	None
Knobs	Encoder knob
Flashlight	false
Ingress Protection Rating	IP54 - Limited dust, water splashes
MIL-STD-810	MIL-STD-810G (also tested to 810C/D/E/F) for low/high temperature, temperature shock, solar radiation, rain, humidity, salt fog, dust, vibration and shock
