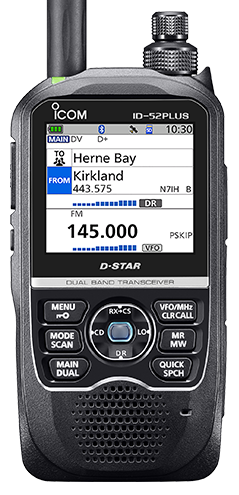

Icom ID-52A Plus
$$$
Listed
Great
Avoid
1000
memories
100
groups
16
letters
5W
transmit power
6m2m1.25m70cm
IP67
MIL-STD-810
Dual band, dual receive
Double superheterodyne
NOAA
NOAA alert
Broadcast FM
Airband
1880mAh
battery
charges from
cradleradioUSB
SMA female
USB-C
S9
Audio
DC input
D-STAR
DMR
System Fusion
NXDN
APRS
DPRS
KISS TNC
CHIRP
MicroSD
Full duplex
Cross-band repeater
Flashlight
Roger beep
Unlockable
Specifications
Market
| Released | August 2024 |
| Discontinued | No |
| Similar To | None |
| Specs checked | Listed |
Circuitry
| Design | Dual band, dual receive |
| RX circuit | Double superheterodyne |
| Operation | |
Full duplex Cross band repeater | |
Receiver
| RX frequencies | 108-174 MHz, 225-479 MHz |
| Also receives | |
Airband Broadcast FM NOAA NOAA alert | |
Transmitter
| Bands | 6m2m1.25m70cmGMRSMURS |
| TX power settings | High=5W; Mid=2.5W; Low2=1W; Low1=0.5W; S-low=0.1W |
| Extras | |
Roger beep Unlockable | |
Memories
| Memories | 1000 |
| Memory groups | 100 |
| Length of memory name | 16 |
| Memory details | 1000 regular channels plus 4 call channels, 50 scan edges, 100 skip channels, 500 broadcast-station memories, 2500 repeater memories, 300 call-sign memories, 300 GPS memories |
Digital
| Voice | |
D-STAR DMR System Fusion NXDN | |
| Data | |
APRS DPRS KISS TNC GNSS | |
| Bluetooth | Bluetooth 5.3 (Class 2); audio headset support and Android Terminal/Access Point mode, wireless picture transfer |
| USB | USB Type-C for charging, CS-52PLUS cloning/programming, microSD access, CI-V control, and data (serial) connection to a PC |
| Programming | |
CHIRP | |
Battery
| Battery capacity | 1880mAh |
| Battery voltage | 7.4V |
| Charges from | |
Cradle Radio USB | |
| Cradle USB connector | None |
| Cradle DC input connector | None |
| Cradle DC input voltage | None |
Physical
| Manufacturer | |||
|---|---|---|---|
| Width | 61mm | 2.41in | |
| Height | 122mm | 4.79in | |
| Depth | 35mm | 1.37in | |
| Weight | 330g | 11.64oz | |
| Carry weight | Unknown | ||
| IP rating | IP67 | ||
| MIL-STD-810 | None | ||
| Display | 2.3 inch color TFT (320 x 280 pixels) | ||
| Antenna connector | SMA female | ||
| USB connector | USB-C | ||
| DC input connector | None | ||
| DC input voltage | None | ||
| Audio connector | S9 (Icom Slim L) | ||
| PTT | Single side button | ||
| Buttons | Unknown | ||
| Knobs | Dual concentric volume/control knob with separate power button on top | ||
| MicroSD | microSD/microSDHC slot, up to 32 GB (firmware updates, repeater lists, settings, voice/QSO recording, picture share, GPS logging) | ||
| Built in | |||
Flashlight | |||
