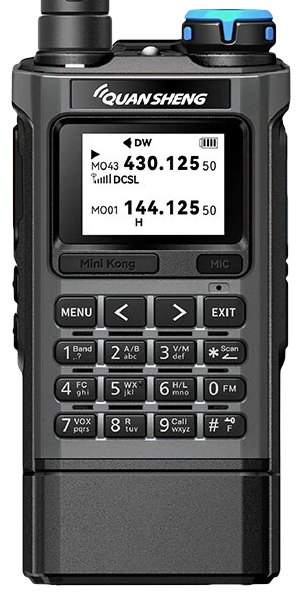

Quansheng UV-K1

Untested

200

Memories

Groups

Name Length

70cm

MIL-STD-810

Dual band
single receive

Direct Conv

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB-C

2500

mAh Battery

SMA Male

USB-C

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Dual band single receive
RX circuit	Direct conversion
Full duplex	false
Cross band repeater	false

Receiver

RX frequencies	136-174 MHz, 400-470 MHz
Airband	false
Broadcast FM	true
NOAA	true
NOAA alert	false

Transmitter

TX power settings
2m band	true
70cm band	true
1.25m band	false
6m band	false
GMRS	false
MURS	false
Roger beep	true

Memories

Memories	200
Memory details

Digital

Bluetooth
USB	Programming and charging the attached battery
GNSS	false

Battery and Cradle

Battery capacity in mAh	2500 mAh
Battery voltage	7.4 volts
Battery USB connector	USB-C
Battery charges from radio	true
Battery charges from a cradle	true
Cradle USB connector	None
Cradle DC input connector
Cradle DC input voltage	volts

Physical Characteristics

Width	59 mm (2.32")
Height	121 mm (4.76")
Depth	36 mm (1.42")
Weight
Carry weight	260 g (9.17 oz)
Display	1.44" LCD
Antenna connector	SMA Male
USB connector	USB-C
DC input connector	None
DC input voltage	None
Audio connector	K1
MicroSD	No
PTT	Single side button
Buttons	Two left side buttons
Knobs	Volume knob with power switch
Flashlight	true
Ingress Protection Rating	Not rated
MIL-STD-810	Not rated
