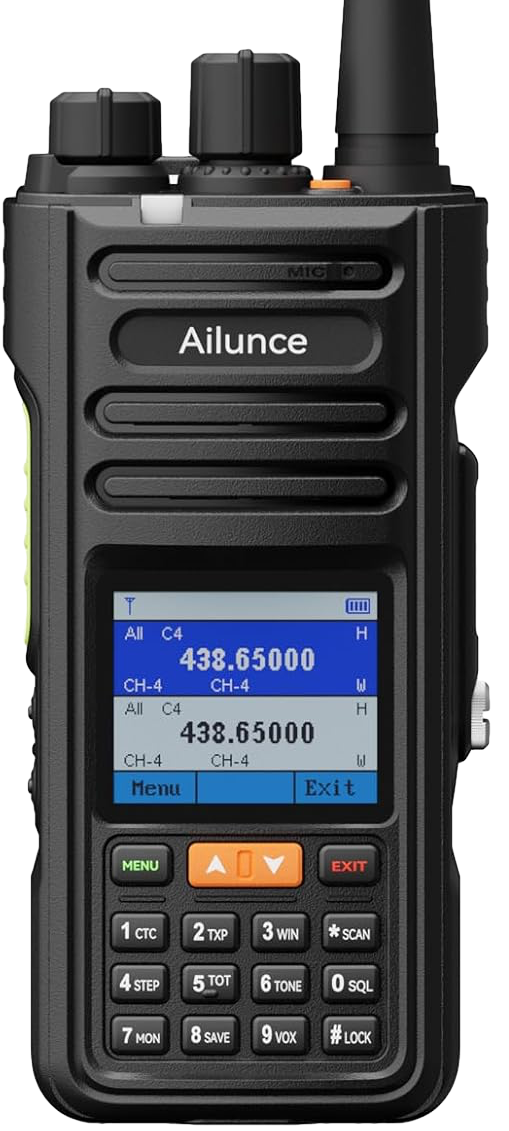

Retevis Ailunce HA2

Untested

1024

Memories

Groups

Name Length

70cm

10W

MIL-STD-810

Dual band
single receive

Direct Conv

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB-C

2800

mAh Battery

SMA Female

USB

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Dual band single receive
RX circuit	Direct conversion
Full duplex	false
Cross band repeater	false

Receiver

RX frequencies	108-136 MHz
Airband	true
Broadcast FM	true
NOAA	true
NOAA alert	true

Transmitter

TX power settings

Super High=10W, High=5W, Mid=2W, Low=1W

2m band	true
70cm band	true
1.25m band	false
6m band	false
GMRS	false
MURS	false
Roger beep	false

Memories

Memories	1024
Memory details

Digital

APRS GNSS KISS TNC

Bluetooth	Programming, PTT, Speaker, Mic
USB
GNSS	true

Battery and Cradle

Battery capacity in mAh	2800 mAh
Battery voltage	7.4 volts
Battery USB connector	USB-C
Battery charges from radio	false
Battery charges from a cradle	false
Cradle USB connector	USB-C
Cradle DC input connector
Cradle DC input voltage	volts

Physical Characteristics

Width
Height
Depth
Weight
Carry weight
Display	1.77" Color LCD
Antenna connector	SMA Female
USB connector	None
DC input connector	None
DC input voltage	None
Audio connector	None
MicroSD	No
PTT	Single side button
Buttons	Two left side programmable buttons, one orange programmable top button
Knobs	Volume knob with power switch, encoder knob
Flashlight	false
Ingress Protection Rating	IP67 - Dust, temporary water submersion
MIL-STD-810	Not rated
