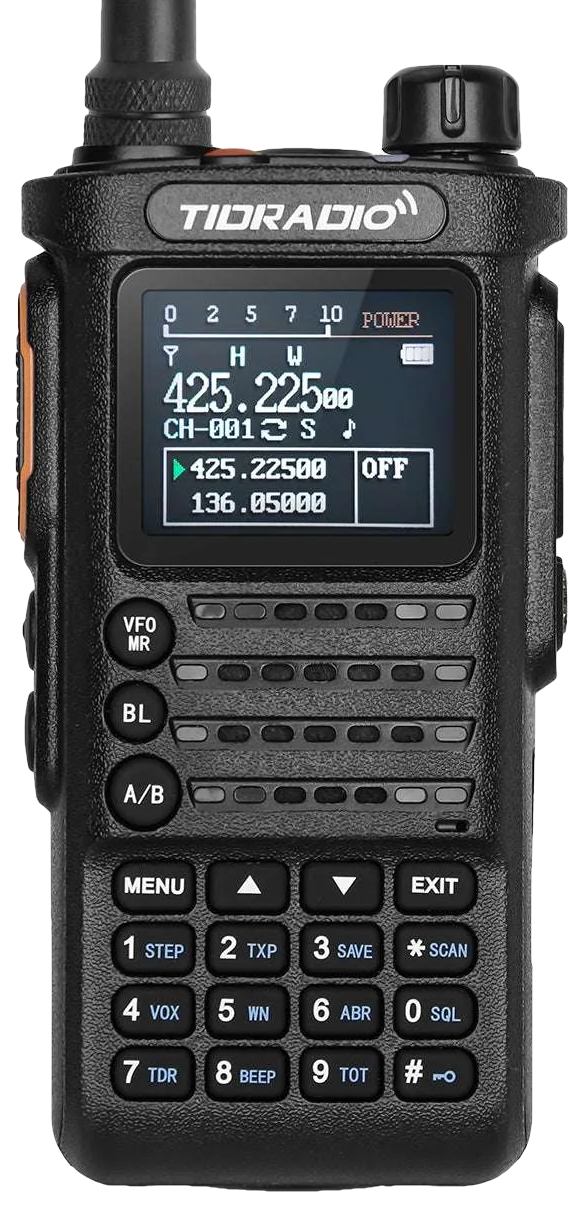

TIDRADIO H8

Untested

199

Memories

Groups

Name Length

70cm

GMRS

10W

MIL-STD-810

Dual band
single receive

Direct Conv

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB-C

2500

mAh Battery

SMA Female

USB-C

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Dual band single receive
RX circuit	Direct conversion
Full duplex	false
Cross band repeater	false

Receiver

RX frequencies	50-76, 76-108, 108-136, 136-174, 174-350, 350-400, 400-470, 470-600 MHz
Airband	true
Broadcast FM	true
NOAA	true
NOAA alert	false

Transmitter

TX power settings	High=10W, Mid=5W, Low=1W
2m band	true
70cm band	true
1.25m band	false
6m band	false
GMRS	true
MURS	true
Roger beep	true

Memories

Memories	199
Memory details

Digital

Bluetooth	App/wireless programming (ODmaster app via Bluetooth module); also CHIRP, CPS, and web
USB
GNSS	false

Battery

Battery capacity in mAh	2500 mAh
Battery voltage	7.4 volts
Battery charges directly from USB	USB-C
Battery charges from a cradle	false
Battery cradle DC input connector
Battery cradle DC input voltage	volts
Battery charges from radio	true

Physical Characteristics

Width
Height
Depth
Weight
Carry weight	300 g (10.58 oz)
Display	1.77" color LCD
Antenna connector	SMA Female
USB connector	USB-C
DC input connector	None
DC input voltage	None
Audio connector	K1
MicroSD	No
PTT
Buttons	None
Knobs	None
Flashlight	true
Ingress Protection Rating	Not rated
MIL-STD-810	Not rated
