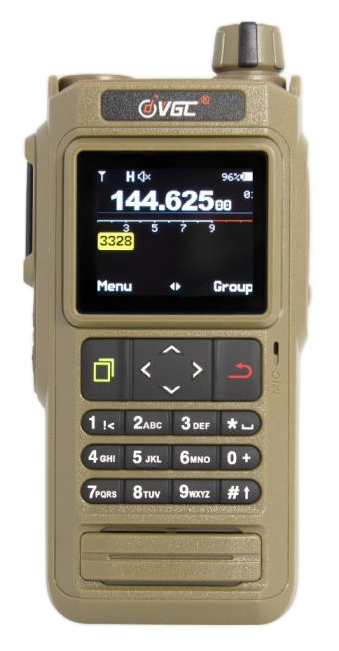

VGC VR-N76

Untested

192

Memories

Groups

Name Length

70cm

MIL-STD-810

Dual band
single receive

Direct Conv

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB-C

2600

mAh Battery

SMA Female

USB

None

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Dual band single receive
RX circuit	Direct conversion
Full duplex	false
Cross band repeater	false

Receiver

RX frequencies	88-108 MHz (broadcast FM), 108-136 MHz (AM airband), 136-174 MHz, 300-550 MHz
Airband	true
Broadcast FM	true
NOAA	false
NOAA alert	false

Transmitter

Level	Manufacturer
Low	1.0 W
High	5.0 W

2m band	true
70cm band	true
1.25m band	false
6m band	false
GMRS	false
MURS	false
Roger beep	false

Memories

Memories	192
Memory details	16 memory banks with 12 channels each

Digital

APRS GNSS KISS TNC

Bluetooth	Two Bluetooth modules allow the control app and a wireless speaker mic to connect at the same time. Used for app-based programming, firmware updates, a wireless PTT speaker mic, and APRS/KISS TNC data over BLE.
USB	USB-C charging (USB-PD supported) and programming
GNSS	true

Battery and Cradle

Battery capacity in mAh	2600 mAh
Battery voltage	7.4 volts
Battery USB connector	USB-C
Battery charges from radio	false
Battery charges from a cradle	false
Cradle USB connector	None
Cradle DC input connector
Cradle DC input voltage	volts

Physical Characteristics

Width	60 mm (2.36")
Height	130 mm (5.12")
Depth	40 mm (1.57")
Weight	312 g (11.01 oz)
Carry weight
Display	Color LCD
Antenna connector	SMA Female
USB connector	None
DC input connector	None
DC input voltage	None
Audio connector	None
MicroSD	No
PTT	Single side button
Buttons	Two programmable buttons on the left side
Knobs	Volume knob with power switch
Flashlight	false
Ingress Protection Rating	IP67 - Dust, temporary water submersion
MIL-STD-810	Not rated
