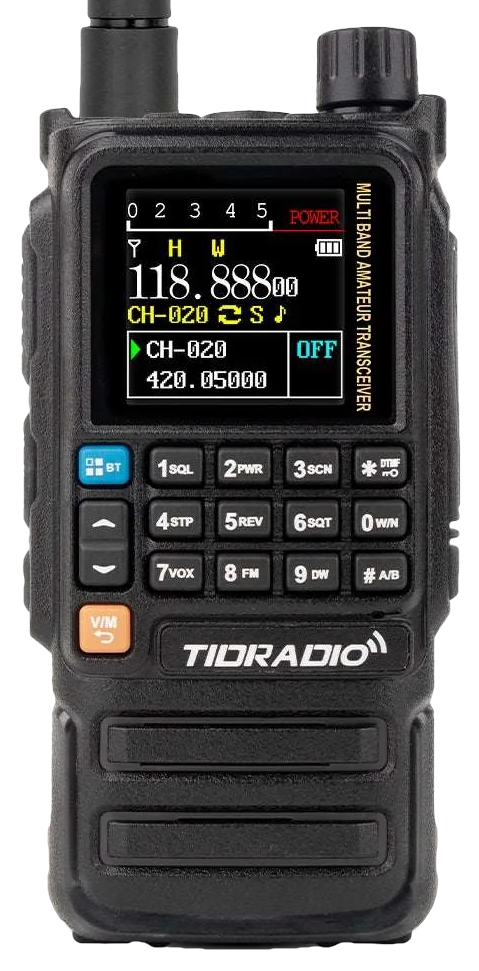

TIDRADIO H3-Plus

Untested

199

Memories

Groups

Name Length

70cm

GMRS

MIL-STD-810

Dual band
single receive

Direct Conv

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB-C

2500

mAh Battery

SMA Female

USB-C

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Dual band single receive
RX circuit	Direct conversion
Full duplex	false
Cross band repeater	false

Receiver

RX frequencies	76-108, 108-136, 136-174, 350-390, 400-520 MHz
Airband	true
Broadcast FM	true
NOAA	true
NOAA alert	false

Transmitter

TX power settings	High=5W, Low=1W
2m band	true
70cm band	true
1.25m band	false
6m band	false
GMRS	true
MURS	true
Roger beep	true

Memories

Memories	199
Memory details

Digital

Bluetooth	Bluetooth 5.1; wireless programming, PTT, mic/headset, and Bluetooth speaker (music/hands-free)
USB
GNSS	false

Battery

Battery capacity in mAh	2500 mAh
Battery voltage	7.4 volts
Battery charges directly from USB	USB-C
Battery charges from a cradle	false
Battery cradle DC input connector
Battery cradle DC input voltage	volts
Battery charges from radio	false

Physical Characteristics

Width	53 mm (2.09")
Height	112 mm (4.41")
Depth	32 mm (1.26")
Weight
Carry weight
Display	1.44" color LCD
Antenna connector	SMA Female
USB connector	USB-C
DC input connector	None
DC input voltage	None
Audio connector	K1
MicroSD	No
PTT	2 buttons, one for each band
Buttons	None
Knobs	Volume knob with power switch
Flashlight	true
Ingress Protection Rating	Not rated
MIL-STD-810	Not rated
