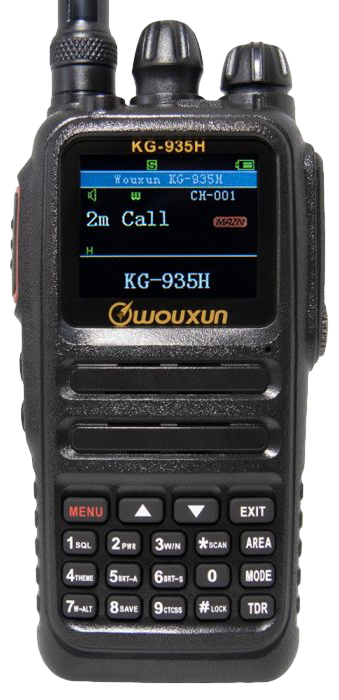

Wouxun KG-935H

Untested

999

Memories

Groups

Name Length

70cm

1.25m

MIL-STD-810

Dual band
single receive

Unknown

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB-C

2600

mAh Battery

SMA Male

USB

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Dual band single receive
RX circuit
Full duplex	false
Cross band repeater	true

Receiver

RX frequencies
Airband	false
Broadcast FM	true
NOAA	true
NOAA alert	true

Transmitter

TX power settings
2m band	true
70cm band	true
1.25m band	true
6m band	false
GMRS	false
MURS	false
Roger beep	true

Memories

Memories	999
Memory details

Digital

Bluetooth
USB
GNSS	false

Battery

Battery capacity in mAh	2600 mAh
Battery voltage	7.4 volts
Battery charges directly from USB	USB-C
Battery charges from a cradle	true
Battery cradle DC input connector
Battery cradle DC input voltage	volts
Battery charges from radio	false

Physical Characteristics

Width	125 mm (4.92")
Height	125 mm (4.92")
Depth	34 mm (1.34")
Weight
Carry weight	490 g (17.28 oz)
Display	Color LCD
Antenna connector	SMA Male
USB connector	None
DC input connector	None
DC input voltage	None
Audio connector	K1
MicroSD	No
PTT	One side button
Buttons	Two programmable side buttons
Knobs	Volume knob with power switch; encoder knob
Flashlight	true
Ingress Protection Rating	IP66 - Dust, powerful water jets
MIL-STD-810	Not rated
