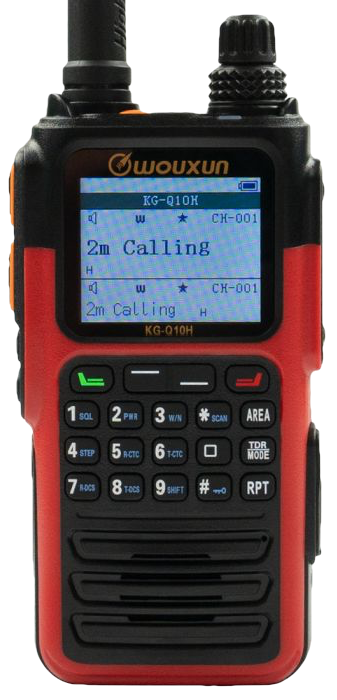

Wouxun KG-Q10H

Tested

999

Memories

Groups

Name Length

70cm

1.25m

MIL-STD-810

Dual band
dual receive

Superhet

NOAA

NOAA Alert

Broadcast FM

Airband

Bluetooth

GNSS

Cradle

USB-C

3000

mAh Battery

SMA Female

USB-C

Audio

DC Input

KISS TNC

APRS

DPRS

D-STAR

System Fusion

NXDN

DMR

CHIRP

MicroSD

Full Duplex

Cross-band Repeater

Flashlight

Roger Beep

Unlockable

Circuitry

Design	Dual band dual receive
RX circuit	Superheterodyne
Full duplex	false
Cross band repeater	true

Receiver

RX frequencies	50–54, 76–108 (broadcast FM), 108–174 (incl. AM airband), 220–225, 320–480, 895–999 MHz
Airband	true
Broadcast FM	true
NOAA	true
NOAA alert	true

Transmitter

TX power settings	Up to 6 W; 4 selectable power levels
2m band	true
70cm band	true
1.25m band	true
6m band	true
GMRS	false
MURS	false
Roger beep	true

Memories

Memories	999
Memory details

Digital

GNSS

Bluetooth
USB
GNSS	true

Battery

Battery capacity in mAh	3000 mAh
Battery voltage	7.4 volts
Battery charges directly from USB	USB-C
Battery charges from a cradle	true
Battery cradle DC input connector
Battery cradle DC input voltage	volts
Battery charges from radio	true

Physical Characteristics

Width	62 mm (2.43")
Height	132 mm (5.18")
Depth	37 mm (1.47")
Weight	238 g (8.40 oz)
Carry weight
Display	Color LCD
Antenna connector	SMA Female
USB connector	USB-C
DC input connector	None
DC input voltage	None
Audio connector	K1
MicroSD	No
PTT	Two PTT buttons, one for each channel
Buttons	Two programmable side buttons and one programmable top button
Knobs	Top volume knob with power switch
Flashlight	true
Ingress Protection Rating	IP67 - Dust, temporary water submersion
MIL-STD-810	Not rated
